Multi-scale photoacoustic tomography using reversibly switchable bacterial phytochrome as a near-infrared photochromic probe

Yao, Junjie; Kaberniuk, Andrii A.; Li, Lei; Shcherbakova, Daria M.; Zhang, Ruiying; Wang, Lidai; Li, Guo; Verkhusha, Vladislav V.; Wang, Lihong V.

- Add this to...
- Twitter
- Facebook
- Google Bookmarks
- LinkedIn

Multi-scale photoacoustic tomography using reversibly switchable bacterial phytochrome as a near-infrared photochromic probe

Published Date:

Nov 09 2015

Source:

Nat Methods. 13(1):67-73.

[PDF-1.52 MB]

Details:

Alternative Title:

Nat Methods

Personal Author:

Yao, Junjie ; Kaberniuk, Andrii A. ; Li, Lei ; Shcherbakova, Daria M. ; Zhang, Ruiying ; ... More ▼

Description:

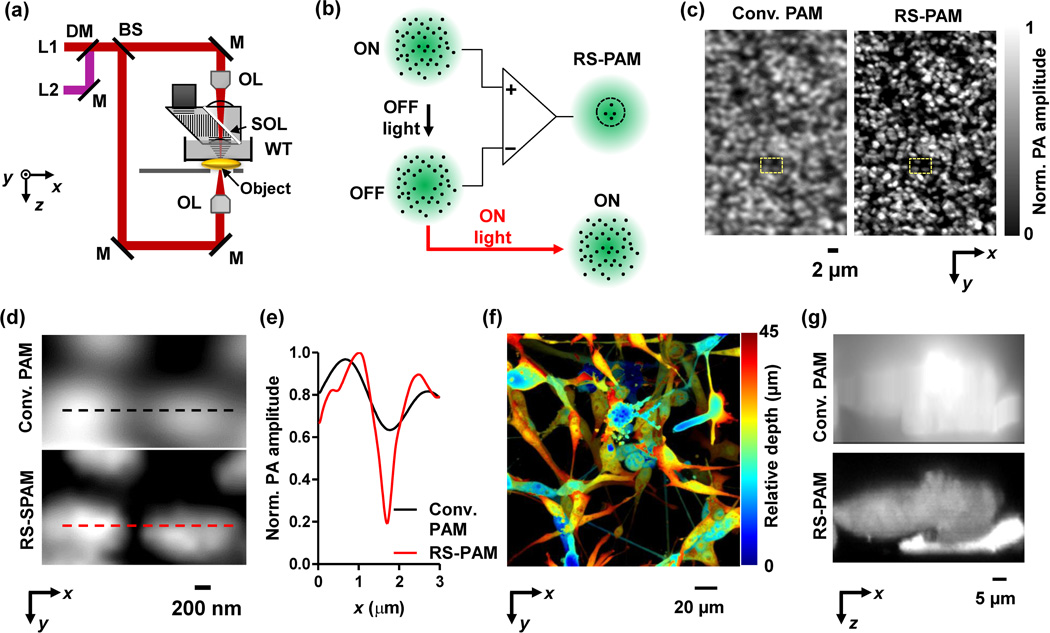

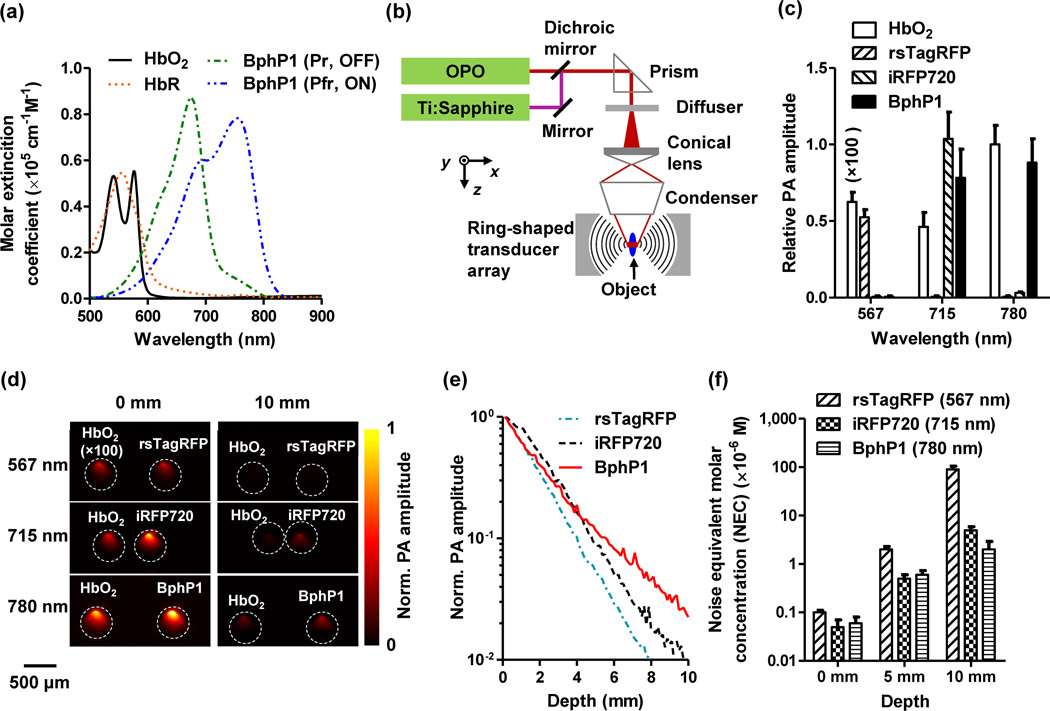

Photoacoustic tomography (PAT) of genetically encoded probes allows for imaging of targeted biological processes deep in tissues with high spatial resolution; however, high background signals from blood can limit the achievable detection sensitivity. Here we describe a reversibly switchable nonfluorescent bacterial phytochrome for use in multiscale photoacoustic imaging, BphP1, with the most red-shifted absorption among genetically encoded probes. BphP1 binds a heme-derived biliverdin chromophore and is reversibly photoconvertible between red and near-infrared light-absorption states. We combined single-wavelength PAT with efficient BphP1 photoswitching, which enabled differential imaging with substantially decreased background signals, enhanced detection sensitivity, increased penetration depth and improved spatial resolution. We monitored tumor growth and metastasis with ∼ 100-μm resolution at depths approaching 10 mm using photoacoustic computed tomography, and we imaged individual cancer cells with a suboptical-diffraction resolution of ∼ 140 nm using photoacoustic microscopy. This technology is promising for biomedical studies at several scales.

Subject:

[+]

Pubmed ID:

26550774

Pubmed Central ID:

PMC4697872

Document Type:

Journal Article

Funding:

CA164468/CA/NCI NIH HHS/United States ; DP1 EB016986/DP/NCCDPHP CDC HHS/United States ; DP1 EB016986/EB/NIBIB NIH HHS/United States ; GM073913/GM/NIGMS NIH HHS/United States ; GM108579/GM/NIGMS NIH HHS/United States ; ... More ▼

Collection(s):

CDC Public Access

Main Document Checksum:

[+]

Supporting Files:

	nihms731893f3.jpg	image/jpeg
	nihms731893f4.gif	image/gif
	nihms731893f4.jpg	image/jpeg
	nihms731893f5.gif	image/gif
	nihms731893f5.jpg	image/jpeg
	NIHMS731893-supplement-1.pdf	application/pdf
	NIHMS731893-supplement-2.doc	application/msword
	nihms731893.nxml	application/octet-stream
	nihms731893f1.gif	image/gif
	nihms731893f1.jpg	image/jpeg
	nihms731893f2.gif	image/gif
	nihms731893f2.jpg	image/jpeg
	nihms731893f3.gif	image/gif
