A coal rib monitoring study in a room-and-pillar retreat mine

Details

• Alternative Title:
  Int J Min Sci Technol
• Personal Author:
  Rashed, Gamal ; Mohamed, Khaled ; Kimutis, Robert
• Description:

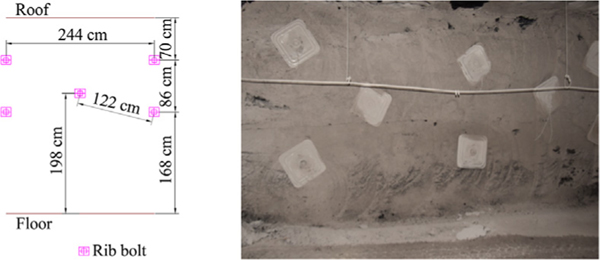

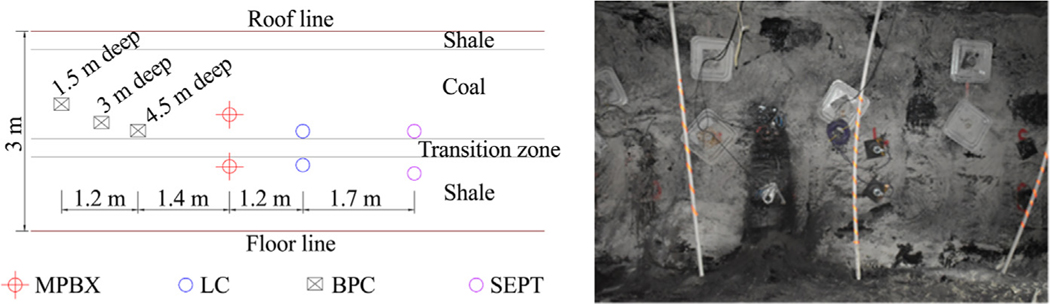

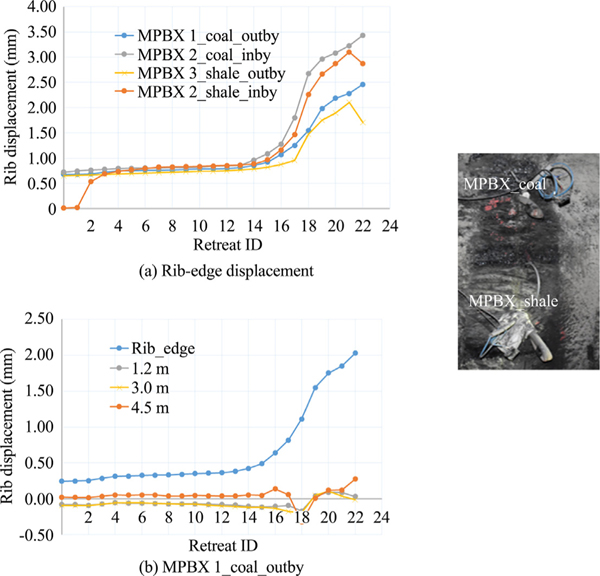

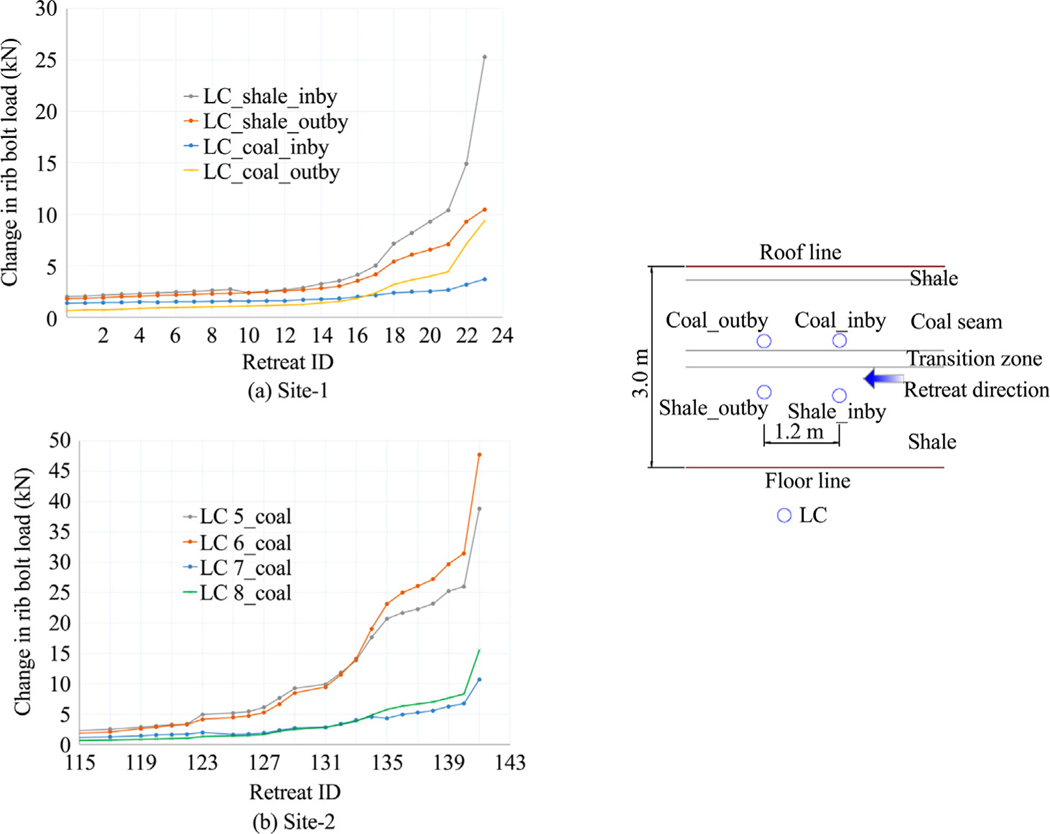

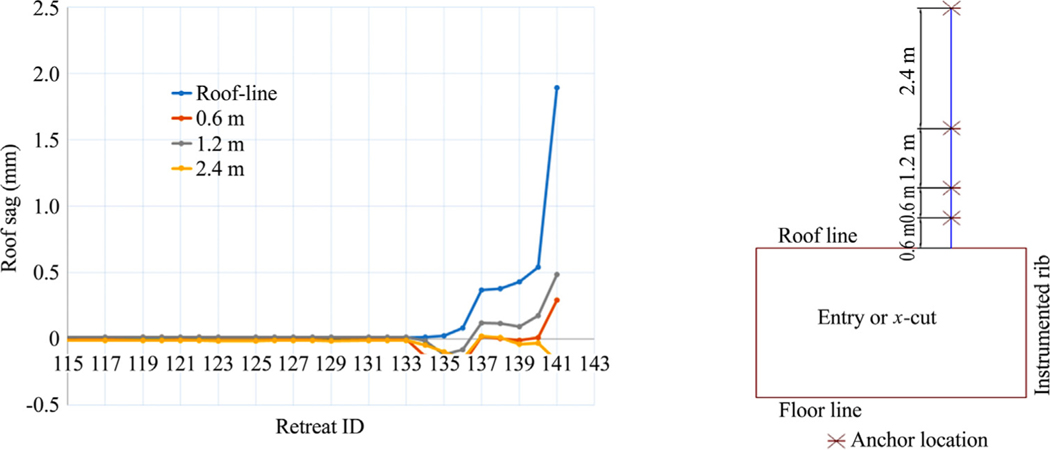

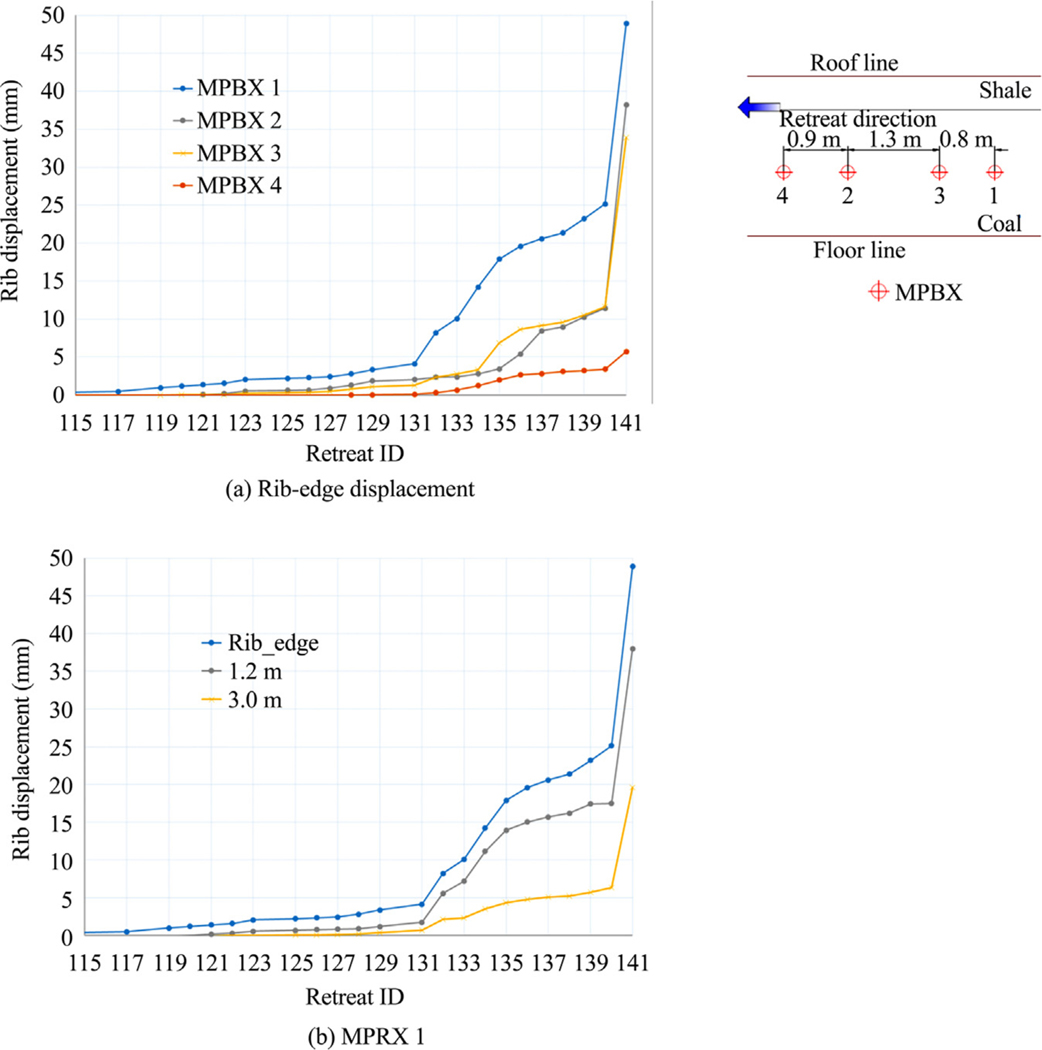

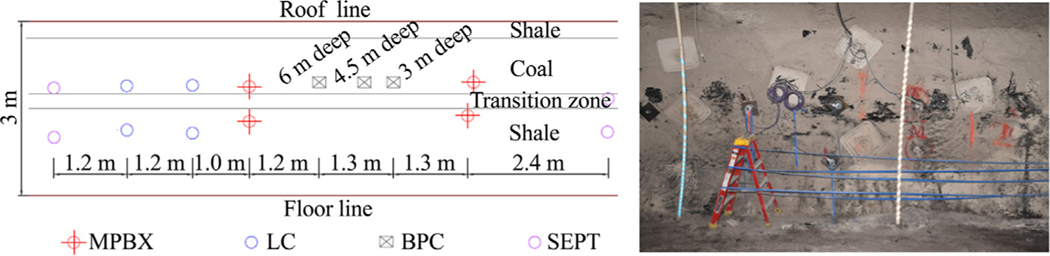

  The National Institute for Occupational Safety and Health (NIOSH) conducted a comprehensive monitoring program in a room-and-pillar mine located in Southern Virginia. The deformation and the stress change in an instrumented pillar were monitored during the progress of pillar retreat mining at two sites of different geological conditions and depths of cover. The main objectives of the monitoring program were to better understand the stress transfer and load shedding on coal pillars and to quantify the rib deformation due to pillar retreat mining; and to examine the effect of rib geology and overburden depth on coal rib performance. The instrumentation at both sites included pull-out tests to measure the anchorage capacity of rib bolts, load cells mounted on rib bolts to monitor the induced loads in the bolts, borehole pressure cells (BPCs) installed at various depths in the study pillar to measure the change in vertical pressure within the pillar, and roof and rib extensometers installed to quantify the vertical displacement of the roof and the horizontal displacement of the rib that would occur during the retreat mining process. The outcome from the monitoring program provides insight into coal pillar rib support optimization at various depths and geological conditions. Also, this study contributes to the NIOSH rib support database in U.S coal mines and provides essential data for rib support design.
• Keywords:
  • Coal rib performance
  • Coal rib design
  • Coal rib monitoring
  • Coal rib failure
  • Load transfer
  • Retreat mining
• Source:
  Int J Min Sci Technol. 31(1):127-135
• Pubmed ID:
  38798751
• Pubmed Central ID:
  PMC11119578
• Document Type:
  Journal Article
• Funding:
  CC999999/ImCDC/Intramural CDC HHSUnited States/
• Volume:
  31
• Issue:
  1
• Download URL:
  https://stacks.cdc.gov/view/cdc/157027/cdc_157027_DS1.pdf
• File Type:
  [PDF - 2.34 MB]
• Collection(s):
  CDC Public Access
• Main Document Checksum:
  urn:sha256:f98cd3a10d63d02569f2ff044057a3b7841b3b2715c1ac838bde656ad7daaa88
