THE CRYO-EM 3D IMAGE RECONSTRUCTION OF ISOLATED LETHOCERUS INDICUS Z-DISCS
-
12 2023
-
-
Source: J Muscle Res Cell Motil. 44(4):271-286
Details:
-
Alternative Title:J Muscle Res Cell Motil
-
Personal Author:
-

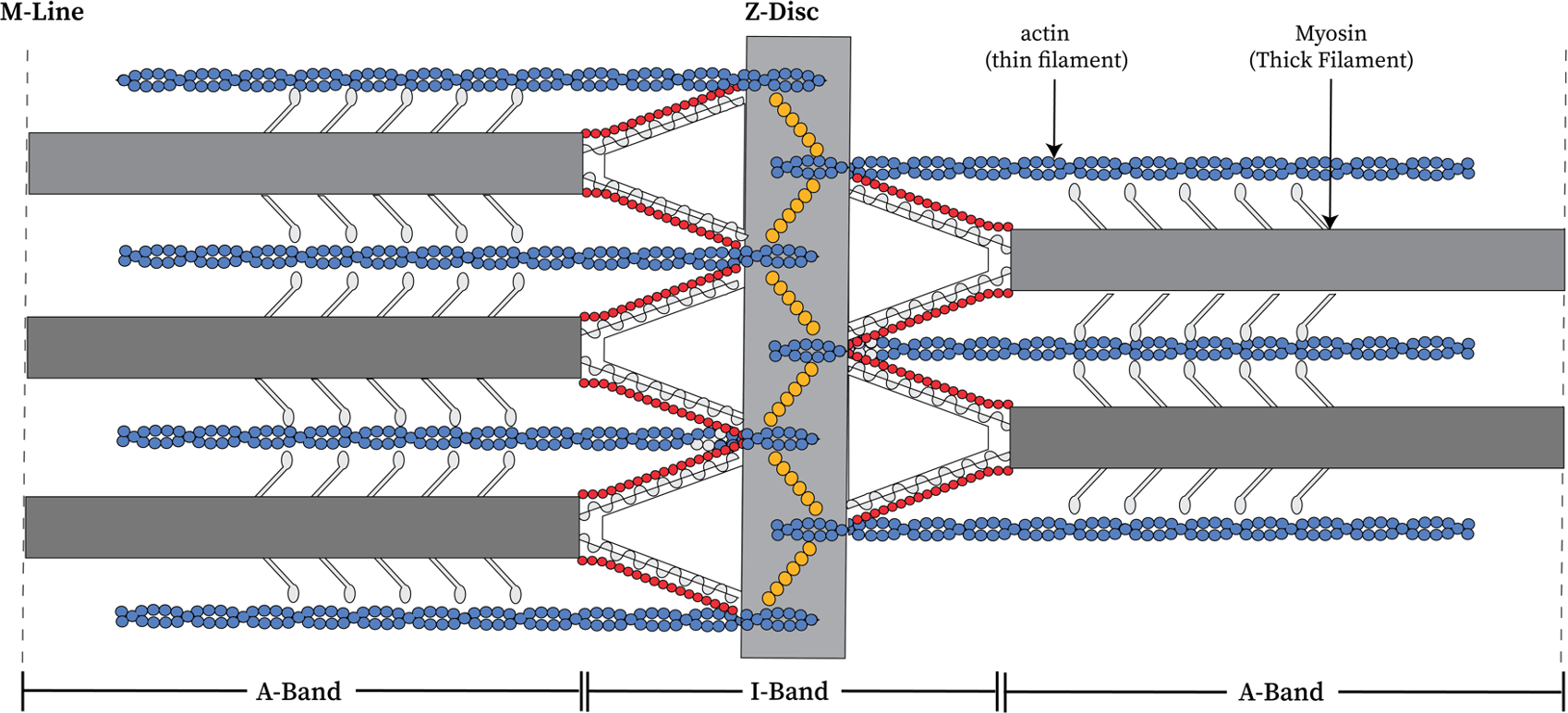

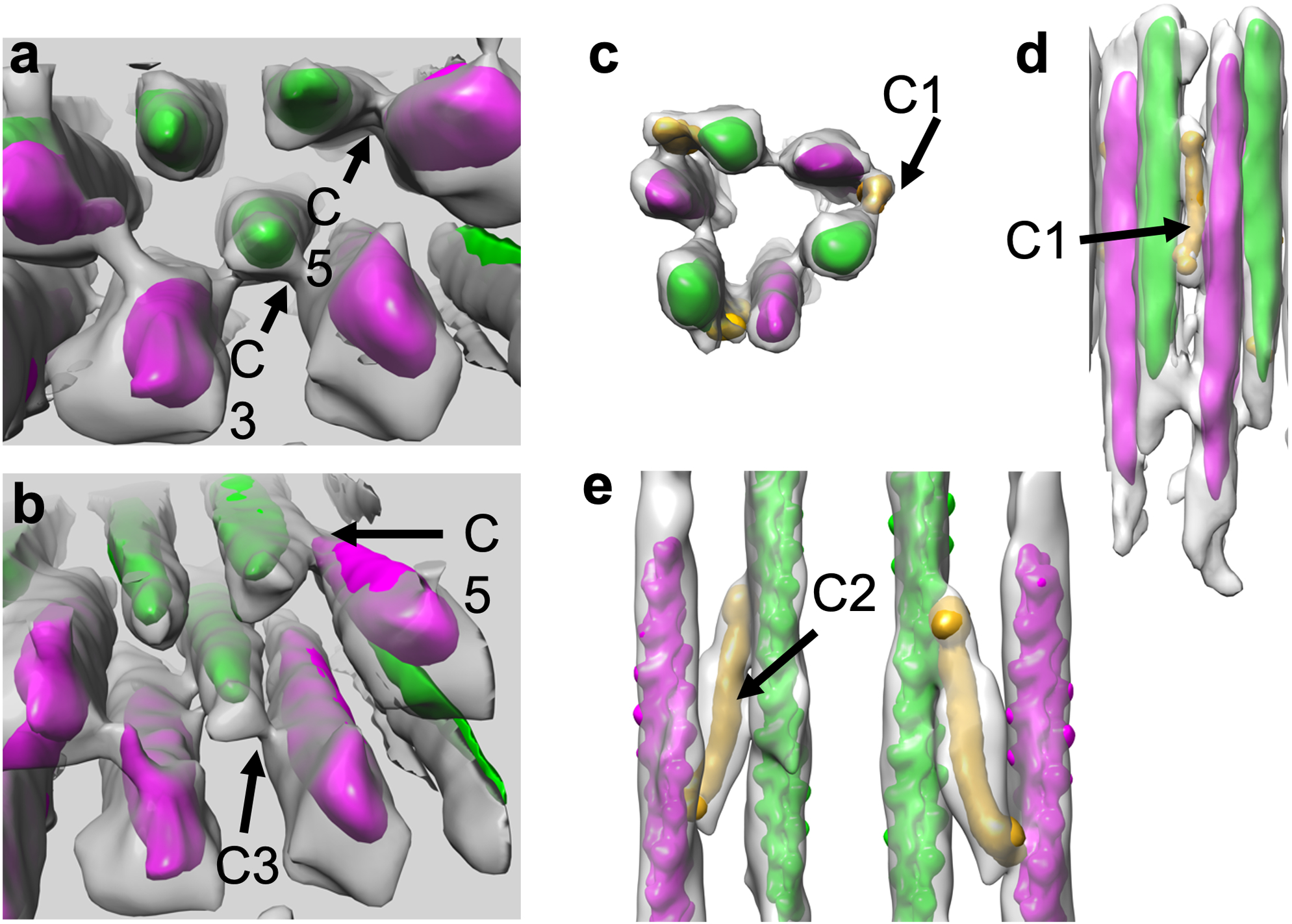

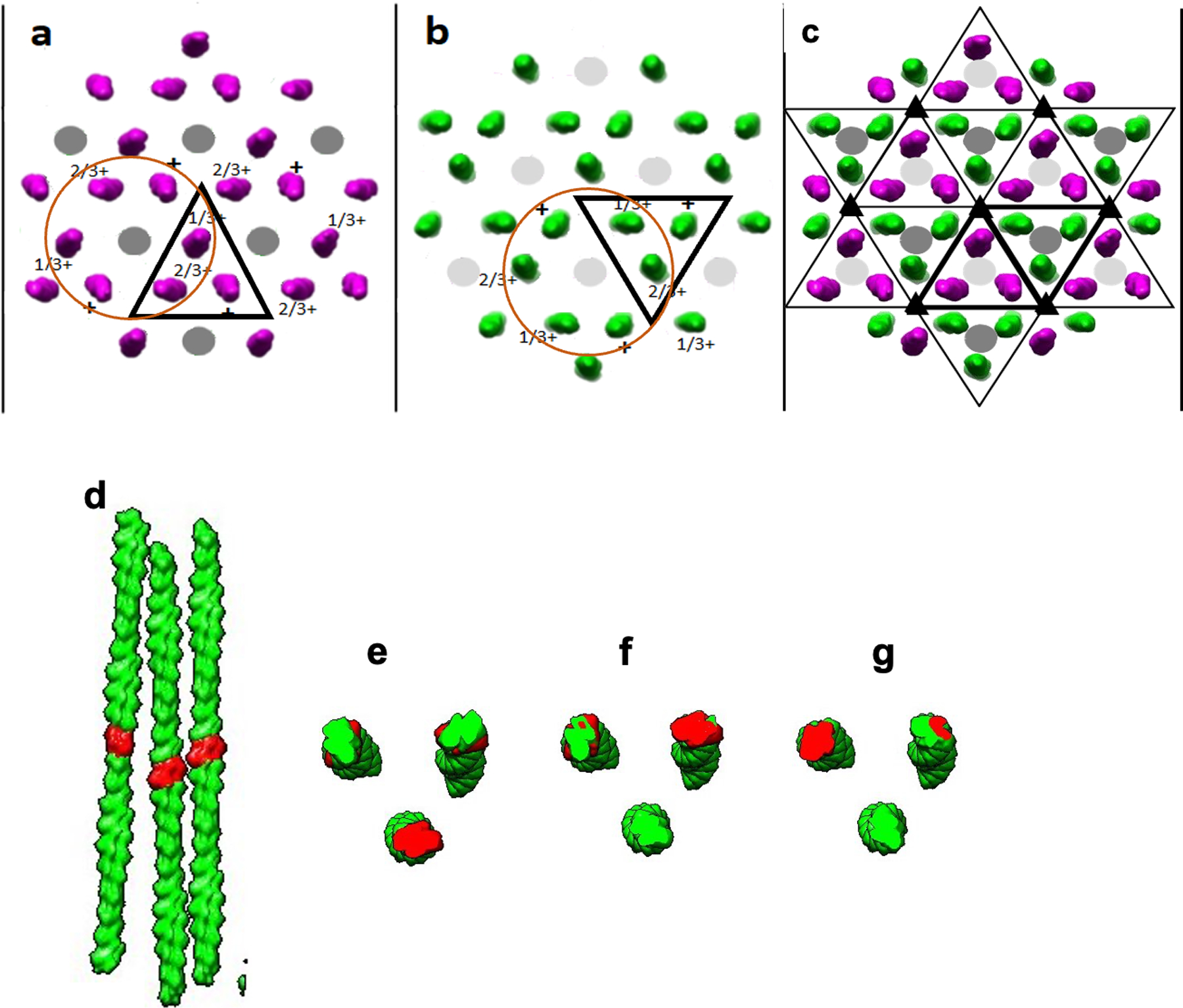

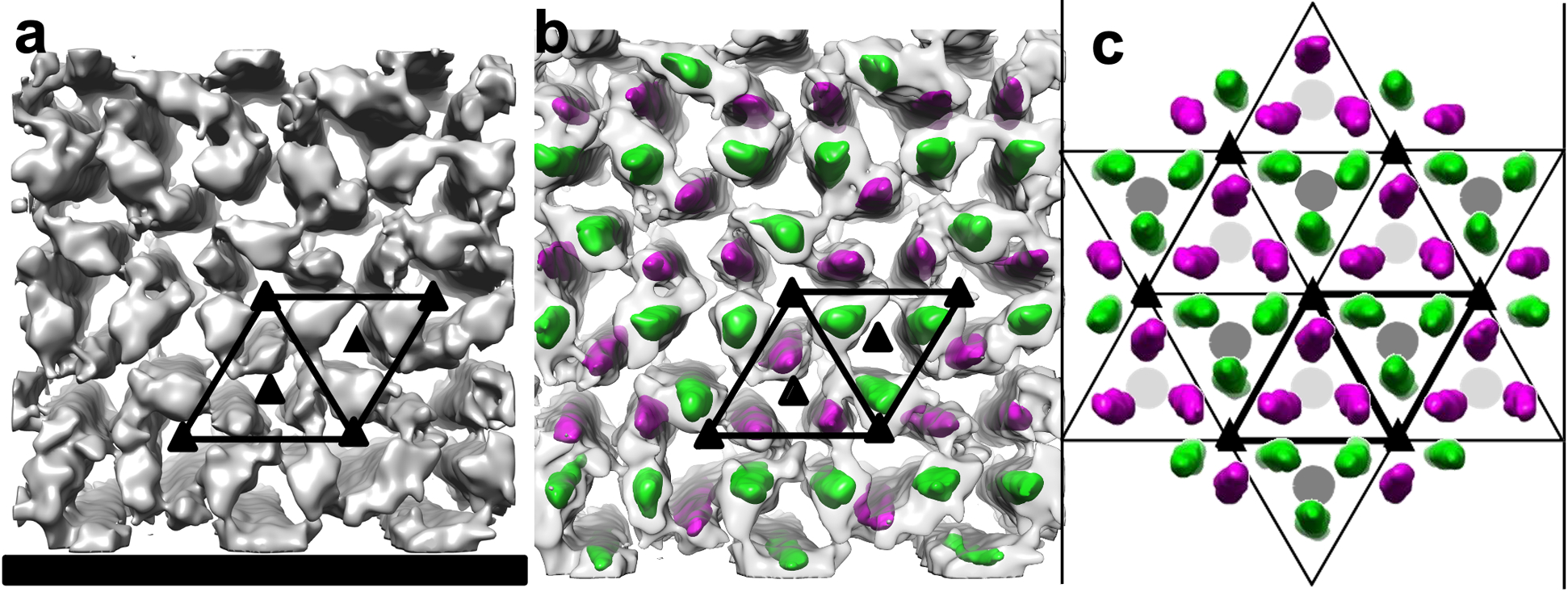

Description:The Z-disk of striated muscle defines the ends of the sarcomere, which repeats many times within the muscle fiber. Here we report application of cryoelectron tomography and subtomogram averaging to Z-disks isolated from the flight muscles of the large waterbug Lethocerus indicus. We use high salt solutions to remove the myosin containing filaments and use gelsolin to remove the actin filaments of the A- and I-bands leaving only the thin filaments within the Z-disk which were then frozen for cryoelectron microscopy. The Lethocerus Z-disk structure is similar in many ways to the previously studied Z-disk of the honeybee Apis mellifera. At the corners of the unit cell are positioned trimers of paired antiparallel F-actins defining a large solvent channel, whereas at the trigonal positions are positioned F-actin trimers converging slowly towards their (+) ends defining a small solvent channel through the Z-disk. These near parallel F-actins terminate at different Z-heights within the Z-disk. The two types of solvent channel in Lethocerus are similar in size compared to those of Apis which are very different in size. Two types of α-actinin crosslinks were observed between oppositely oriented actin filaments. In one of these, the α-actinin long axis is almost parallel to the F-actins it crosslinks. In the other, the α-actinins are at a small but distinctive angle with respect to the crosslinked actin filaments. The utility of isolated Z-disks for structure determination is discussed.
-
Subjects:
-
Keywords:
-
Source:
-
Pubmed ID:37661214
-
Pubmed Central ID:PMC10843718
-
Document Type:
-
Funding:
-
Volume:44
-
Issue:4
-
Collection(s):
-
Main Document Checksum:
-
Download URL:
-
File Type:
Supporting Files
-
gif jpeg gif jpeg gif jpeg gif jpeg gif jpeg gif xml pdf jpeg gif jpeg gif jpeg gif jpeg
